Mezzanine Racking – Multi-Tier Vertical Warehouse Storage Solution

Struggling with limited ground floor space and surging inventory volumes without budget for warehouse expansion or relocation? Mezzanine racking delivers a cost-effective vertical storage solution that unlocks unused overhead space inside your existing facility. Unlike single-layer selective racks or drive-in bulk systems, this modular multi-level structure builds extra storage tiers above your ground pallet zones, doubling or tripling usable warehouse square footage at a fraction of construction costs. It is widely adopted by e-commerce fulfillment centers, manufacturing plants, spare parts warehouses, and mixed-stock cold storage facilities with multiple SKUs.

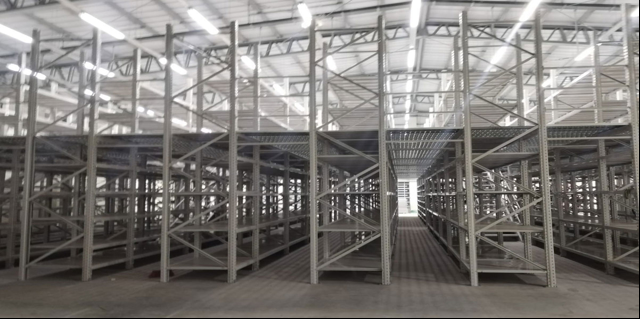

1. Complete Mezzanine Racking Structure

Kingmore mezzanine racking adopts full bolted modular assembly, zero on-site welding for fast installation and future reconfiguration. The full system consists of standard core components and customizable accessories:

Load-bearing upright frames: Thickened Q235B / low-temperature Q355D perforated steel columns with reinforced base plates anchored to warehouse concrete floors, supporting both ground pallet storage and upper platform loads

Primary & secondary support beams: Step beams with locked seat connections to evenly distribute heavy platform weight

Anti-slip flooring options: Galvanized steel grating, solid patterned steel plates, wire mesh deck (for fire sprinkler penetration)

Safety auxiliary kits: Anti-fall guardrails, industrial staircases, self-closing safety gates, optional cargo lifts for pallet transportation between tiers

Bottom integrated pallet rack: Standard selective rack frames built directly under the mezzanine to store full pallets, realizing dual-layer storage in one footprint

2. How Mezzanine Racking Works

The rack-supported mezzanine design integrates storage racks and structural support into one unified system, with two independent storage zones separated vertically:

Ground floor: Forklift-accessible pallet rack area for full pallet bulk goods, matching standard selective rack operation flow

Upper mezzanine deck: Manually operated picking zone for cartons, spare parts, small totes and split-case inventory; staff walk freely on flat flooring with full safety rail protection

Warehouse operators can separate fast-moving small goods upstairs and bulk palletized raw materials downstairs. All tiers feature clear walkways, and optional cargo elevators enable direct pallet transfer between floors without forklift climbing restrictions. The entire structure is fully dismountable and relocatable if your warehouse layout or product mix changes later.

3. Core Competitive Advantages

Maximize Vertical Space Utilization

Convert wasted ceiling height into functional storage space, lifting total warehouse capacity by 100%–200%. No need to rent larger warehouses or build new factory extensions, drastically cutting monthly rental expenditure.

Dual-Layer Integrated Storage

Combines heavy pallet storage on the ground and multi-SKU manual picking on upper decks, perfectly matching mixed inventory operation that single-layer racking or drive-in systems cannot support.

Customized Load & Tier Design

Light, medium and heavy-duty versions available, with floor load capacity adjustable from 300kg/㎡ up to 2000kg/㎡. 2-tier, 3-tier or custom height layouts are tailored to your warehouse clear height limits.

Wide Environmental Adaptability

Standard electrostatic powder coating for normal-temperature factories; hot-dip galvanized Q355D steel for -30℃ cold storage and humid coastal warehouses, anti-rust and low-temperature resistant without structural deformation.

Low Maintenance & Long Service Life

All bolt-connected steel structure avoids welding crack risks; only regular bolt tightness inspection required. Service life exceeds 18 years under daily heavy warehouse operation.

Flexible Modular Upgrade

All components are standardized interchangeable parts. You can expand platform area, add staircases or adjust partition zones later without replacing the whole rack system.

4. Suitable Industries & Warehouse Scenarios

Mezzanine racking fits warehouses with mixed inventory and available vertical headroom, especially these sectors:

E-commerce fulfillment centers: Mass small carton storage & order picking upstairs, bulk stock pallets downstairs

Auto & machinery factories: Spare parts, tool storage on upper decks, raw material pallets below

Food & beverage warehouses: Split finished goods upstairs, bulk ingredient pallets on ground; galvanized version for cold room zones

Textile & hardware distributors: Loose roll, small parts manual sorting

Third-party 3PL logistics: Multi-client mixed inventory classified by tiers

Retail chain distribution: Small package merchandise storage for store replenishment

Difference from Drive-In Racking

Drive-in racking focuses on single-SKU high-density bulk LIFO storage with forklift-only access, while mezzanine racking targets multi-SKU mixed goods with both forklift pallet storage and manual order picking capabilities, solving different warehouse pain points respectively.

5. Global Compliance & Kingmore Engineering Support

All Kingmore mezzanine racking complies with international industrial standards for global export projects:

Europe: EN 15512, FEM steel structure safety specifications

North America: ANSI RMI warehouse rack standards

Latin America (Brazil, Mexico): Full metric design matching ABNT NBR safety norms, with Portuguese CAD layout drawings and load test reports provided for tender bidding

Free one-stop engineering service for clients:

On-site warehouse dimension measurement & space optimization layout design

Custom load calculation and structural safety load test reports

Complete tender document package: Material certificates, anti-corrosion certification, structural engineering drawings

Containerized bulk export packaging and installation technical guidance manual

6. Who Should Choose Mezzanine Racking

You need a mezzanine rack system if you meet any of the following conditions:

Your warehouse floor area is insufficient, but ceiling height reaches over 4 meters

You store mixed inventory: full pallets plus large volumes of small cartons/spare parts requiring manual picking

You operate e-commerce, manufacturing spare parts or multi-SKU logistics warehouses

You want to avoid high costs of warehouse relocation or factory expansion

You run cold storage or coastal humid warehouses requiring anti-corrosion low-temperature steel structures
